The Weller WLSK1000 is a professional kit designed for precise straightening and repair of bent or deformed leads on QFP (Quad Flat Pack) components. It is ideal for laboratories, service centers, and manufacturing facilities, allowing components to be realigned before soldering, reducing waste and avoiding component replacement.

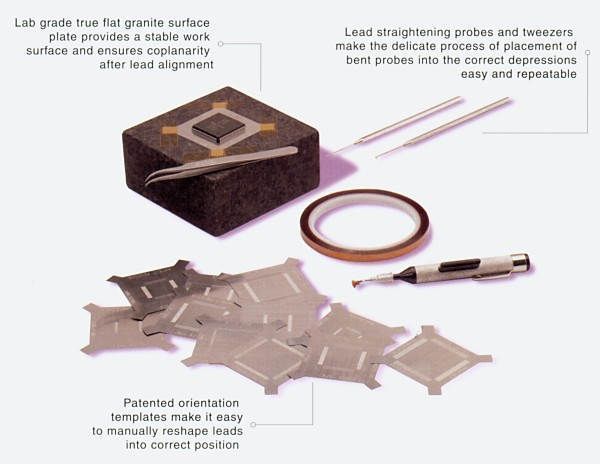

Kit Contents and Functions:
| Component | Purpose |
|---|---|
| Patented Precision Alignment Templates | Provide accurate guidance to manually straighten bent QFP leads into correct positions. |
| Lab-Grade Granite Surface Plate | Ensures a stable, perfectly flat working surface for lead alignment and coplanarity checks. |
| Lead Straightening Probes (2 pcs) | Hand tools for delicate positioning and realignment of leads into the templates. |
| Precision Tweezers | For handling and manipulating small components during lead repair. |
| Vacuum Pickup Tool | Allows safe lifting and placement of components without mechanical contact. |
| Kapton Tape | High-temperature insulating tape for component fixation or protecting board areas. |
| Replacement Templates (various sizes) | Additional templates for different QFP sizes (purchased separately). |
| Rugged Storage Box | Organizes and securely stores all kit components. |
| Instruction Manual | Detailed guidance on using the templates and tools for maximum efficiency. |
Key Benefits:
-
Restores bent or deformed QFP leads without sending components back to the manufacturer.
-
High precision with alignment templates and granite surface plate.
-
Reduces repair costs and component scrap.
-
Complete “ready-to-use” kit for professional repair and laboratory work.
